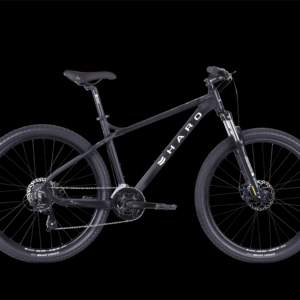

HARO 2022 Double Peak Trail
FEATURES
- New Double Peak X6 Series frame w/ tapered head tube
- Suntour XCT-30 HLO 100mm travel fork
- Aluminum crankset, 36/22T, 2×9
- Altus M2020-M 2×9 front derailleur
- New Alivio M3100 SGS 9-spd rear derailleur
- Shimano HG-200 9-spd 11-36T cassette
- MX-21 27.5″ x 27mm Aluminum DW rims
- KENDA Regolith 27.5″x2.4″ tires
- Radius hydraulic disc brakeset, Center Lock
- 27.5″ and 29″ available
The 2021 Double Peak 27.5″ Trail model features a brand new frame design, made from X6 series aluminum, with a low stand-over height for a low center of gravity and internal cable routing. The DP Trail model features a Shimano Alivio 2×9 drive train, versatile and capable of handling a wide variety of terrain. It glides along on 27.5″ double wall rims, stainless spokes and new Kenda Regolith 2.4″ tires. The front end features a Suntour XCT-30 100mm fork with hydraulic lockout.
| Frame | New 2021 Haro Double Peak 27.5″ X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA |
|---|---|
| Fork | SR Suntour XCT-30 | 27.5x100mm travel | Hydraulic lockout |
| Colors | Matte Black |
| DRIVETRAIN | |
| Cranks | Shimano MT-101 | 36/22T | 2×9-Spd |
| Pedals | FPD Nylon body | Chromoly axles | Platform |
| Chain | KMC Z9 9-spd |
| Bottom Bracket | Shimano Sealed cartridge |
| Front Derailleur | Shimano Altus | FD-M2020 | 2×9-spd | Top Swing |
| Rear Derailleur | New Alivio M3100 SGS 9-spd | Shadow design |
| Derailleur Shifter | Shimano SL-M2010-2L | 2×9-spd |
| Freewheel/Cassette | Shimano HG-200 9-spd 11-36T |
| WHEELS | |
| Tires | KENDA Regolith | 27.5″x2.4″ |
| Wheels/Rims | MX-21 27.5″x27mm Aluminum double wall |
| Hubs | Shimano TX-505 alloy | Center Lock Disc | cassette 32h |
| BRAKING SYSTEM | |
| Brakes | Radius Hydraulic Brake Calipers |
| Brake Levers | Radius Hydraulic Brake Levers |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Trail II |
| Handlebar | Pivit aluminum | 15mm riser bar | 31.8mm |
| Stem | Pivit forged stem |
| Headset | 1-1/8″-1.5″ Threadless for 50/62mm OD headtube | 10.0mm Aluminum top cover |
| Saddle | New Haro Double Peak |
| Seat Post | Pivit aluminum micro adjust 31.6mm |
| Seat Clamp | Pivit aluminum 34.9mm quick release |
| Extras | Internal housing routing |
GEOMETRY
| SIZE | XS | S | M | L |
|---|---|---|---|---|
| A. Seat Tube (C-T) | 356mm (14″) | 406mm (16″) | 457mm (18″) | 508mm (20″) |
| B. Top Tube (Effective) | 549mm (21.6″) | 584mm (23″) | 612mm (24.1″) | 625mm (24.6″) |
| C. Head Tube Angle | 68° | 68° | 68° | 68° |
| D. Seat Tube Angle | 73° | 73° | 73° | 73° |
| E. Chainstay Length | 435mm (17.1″) | 435mm (17.1″) | 435mm (17.1″) | 435mm (17.1″) |
| F. BB Drop | 45mm (1.8″) | 45mm (1.8″) | 45mm (1.8″) | 45mm (1.8″) |
| G. Wheelbase | 1067mm (42″) | 1102mm (43.4″) | 1130mm (44.5″) | 1144mm (45″) |
| H. Head Tube Length | 100mm (3.9″) | 100mm (3.9″) | 110mm (4.3″) | 120mm (4.7″) |
| I. Standover | 713mm (28.1″) | 713mm (28.1″) | 727mm (28.6″) | 759mm (29.9″) |
| J. Stack Height | 586mm (23.1″) | 586mm (23.1″) | 595mm (23.4″) | 607mm (23.9″) |
| K. Reach | 370mm (14.6″) | 405mm (15.9″) | 430mm (16.9″) | 440mm (17.3″) |
| L. Fork Height | 498mm (19.6″”) | 498mm (19.6″”) | 498mm (19.6″”) | 498mm (19.6″”) |
| M. Fork Offset | 42mm (1.7″) | 42mm (1.7″) | 42mm (1.7″) | 42mm (1.7″) |
| N. Stem Length | 60mm | 60mm | 60mm | 60mm |
| O. Bar Width | 700mm | 700mm | 700mm | 700mm |
| P. Crank Length | 170mm | 170mm | 175mm | 175mm |
size
L, M, S
