Specs
SKU : 420-2520-00
Color : Silver
Weight : 5.0 kgs
Material : aluminum / iron / plastic

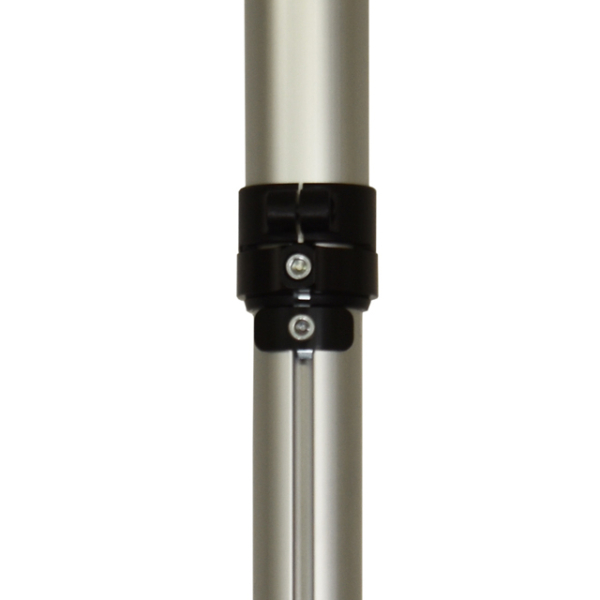

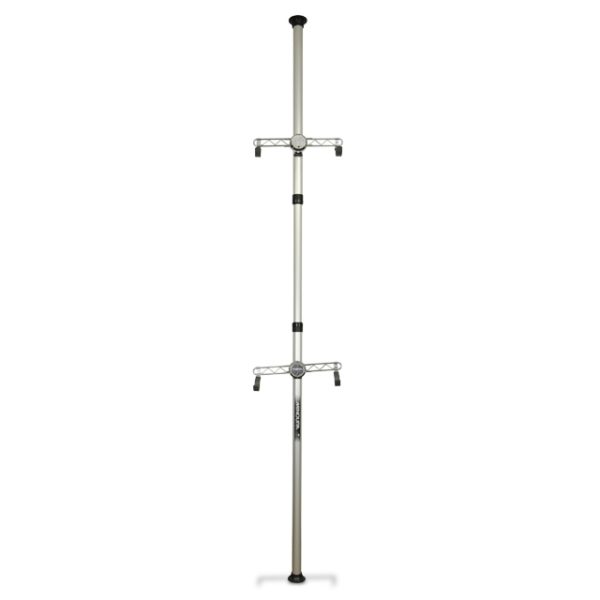

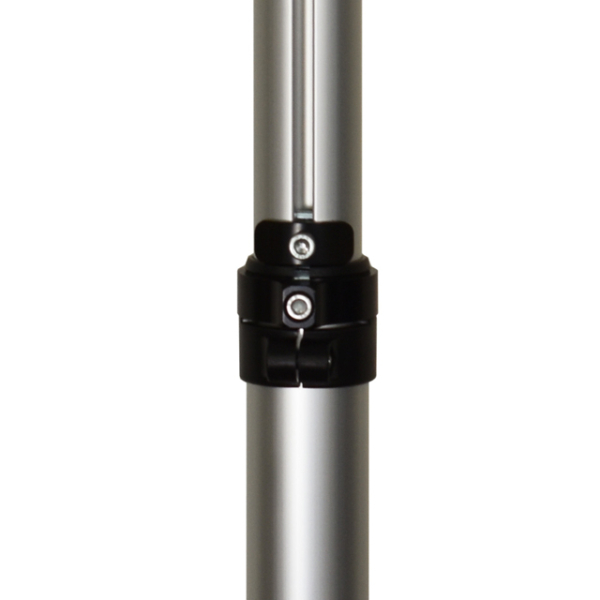

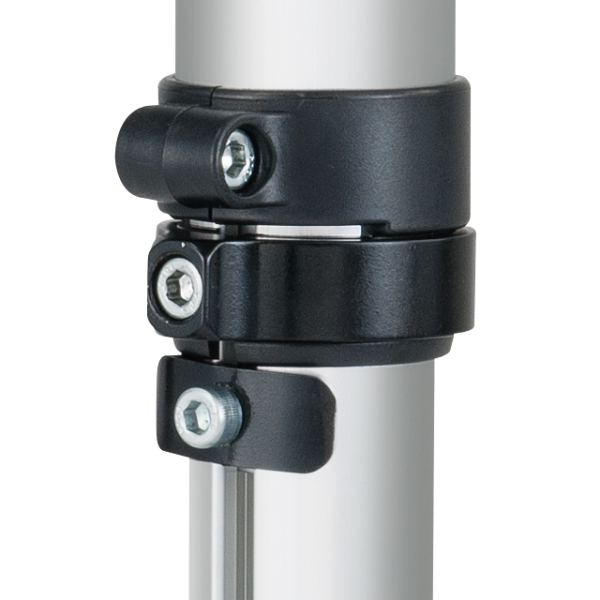

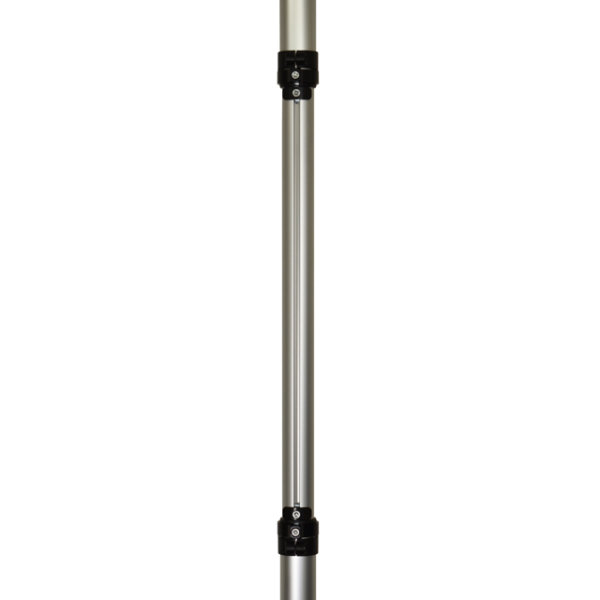

Pillar height : 2,100 mm – 2,700 mm
Pillar diameter : 45 mm (upper and bottom) / 40 mm (middle)

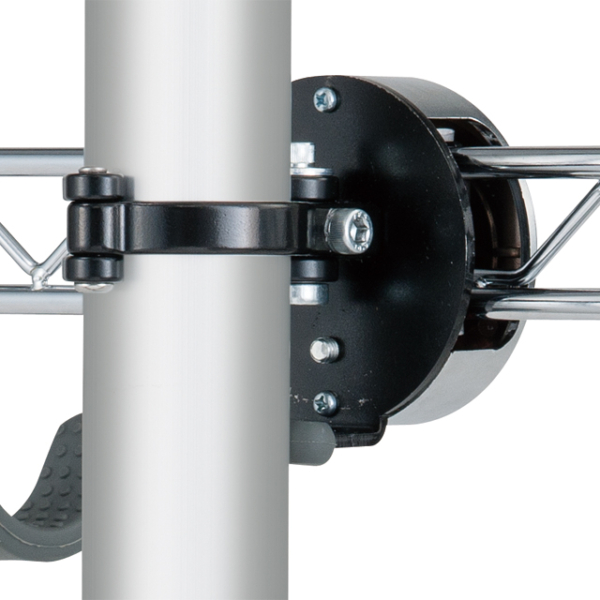

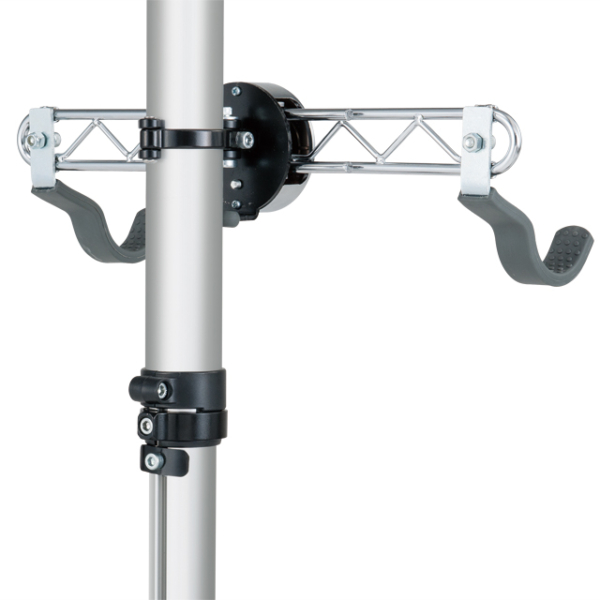

Distance of cradle hook :
Surface of pillar to center of hook : 100 mm
Space of right and left hook : 325 mm – 415 mm
Maximum frame diameter : up to 60 mm
Maximum capacity : 25 kgs each cradle
Cautions / About set up
- Select flat floor with no obstacles or items around the area.

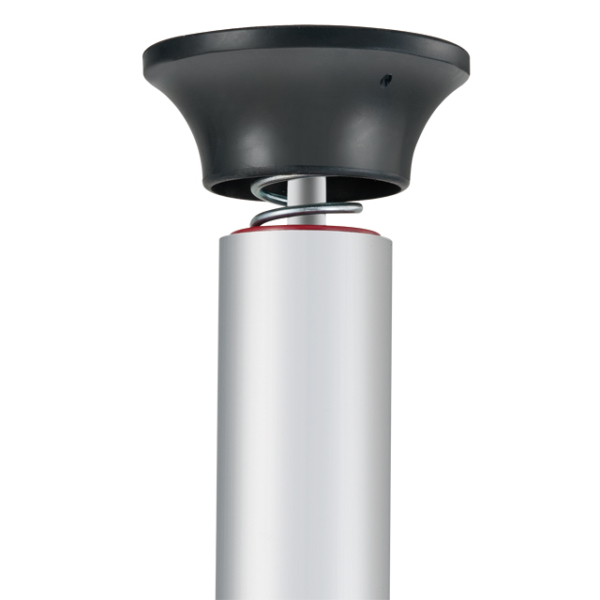

- Check the condition and structure of the ceiling.

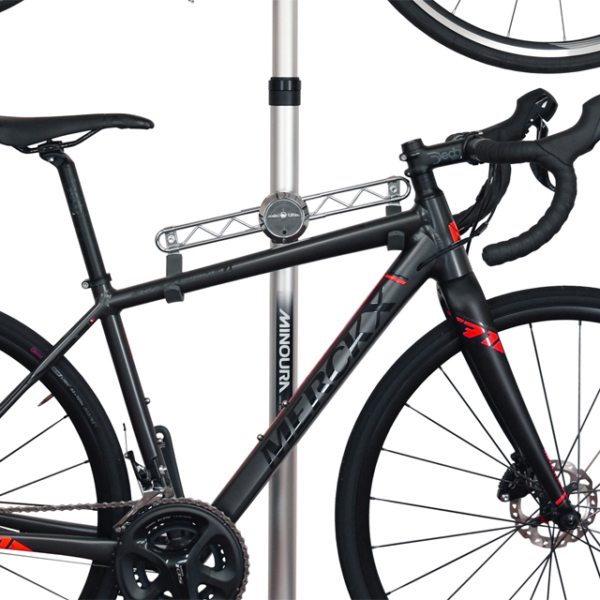

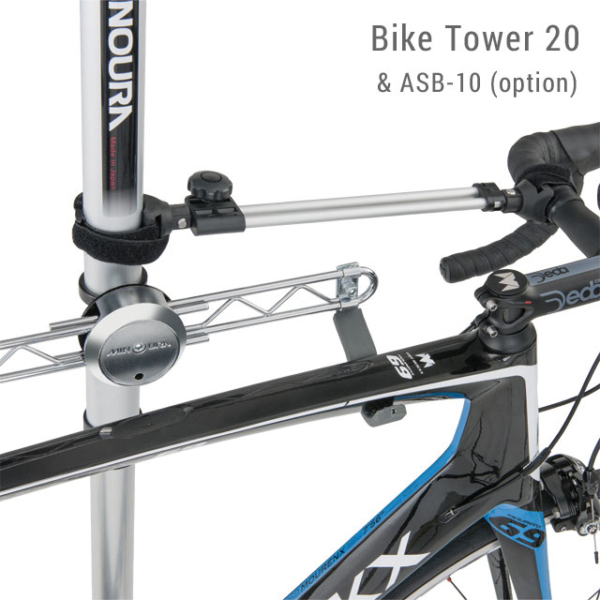

Cautions / How to hook a bike

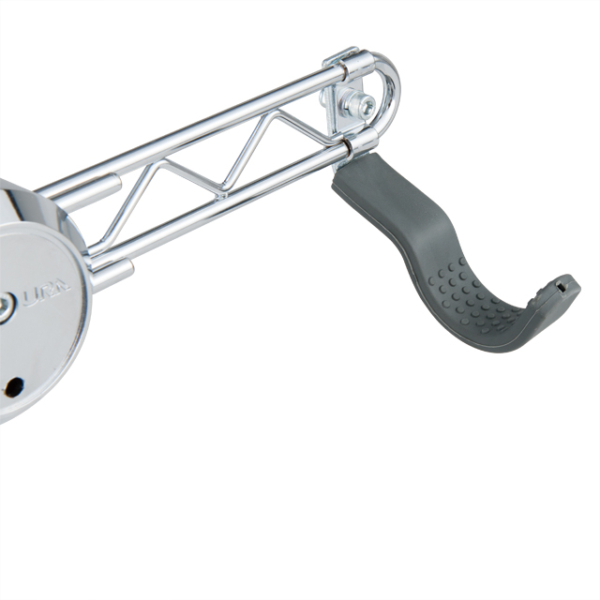

- Change the angle of cradle hook to fit the bike frame.
- You may need to hook between the handlebar and seat post when using a mini-velo or kids bike.
- Do not use outdoors or in direct sun light.
